Durable Ladle Slide Gate For Continuous Steel
Ladle slide gate is critical for ensuring a continuous and efficient steel casting process. It provides precise flow control of molten steel, minimizes impurities, and helps to ensure consistent and high-quality steel production.
Popis
Description
Ladle slide gates are an essential component in steelmaking, used to control the flow of molten metal from a ladle to a tundish during the continuous casting process. They are typically made of high-quality refractory materials and are designed to withstand the high temperatures and harsh conditions of the steelmaking process.

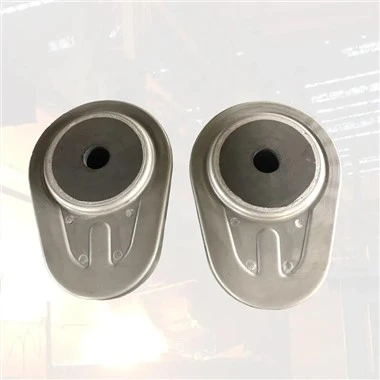

The ladle slide gate consists of a slide plate, housing, and control mechanism. The slide plate is the component that controls the flow of the molten metal, and it is moved by a control mechanism that may be manual or automated. The housing is the structure that supports the slide plate and provides a seal to prevent leaks.
Ladle slide gates are available in a variety of sizes and configurations to meet the needs of different steelmaking applications. They may be classified based on the type of control mechanism used, such as manual, pneumatic, or hydraulic. They may also be classified based on the type of refractory material used, such as alumina-carbon, magnesia-carbon, or dolomite.
Specification
| Details | Description |
|---|---|
| Material | Alumina-carbon |
| Type | Hydraulic |
| Size | 1500 x 1500 mm (59.1 x 59.1 in) |
| Thickness | 200 mm (7.87 in) |
| Flow rate | 6000 L/min (1585 gal/min) |
| Temperature | 1700°C (3092°F) |
| Sealing mechanism | Water-cooled |
| Operating pressure | 30-50 bar (435-725 psi) |
| Service life | 400 heats |
| Installation | Bolt-on |
| Maintenance | Inspect and replace refractory components as needed, replace slide plate after 200 heats |
Packing
Wooden crate: The ladle slide gate may be packed in a sturdy wooden crate for protection during shipping and handling. The crate may be lined with foam or other cushioning material to prevent damage during transit.
Steel frame: Some may package the ladle slide gate in a steel frame or cage to provide additional protection during transportation.
Plastic wrapping: The ladle slide gate may be wrapped in plastic to protect it from moisture and other environmental factors during transit.
Custom packaging: Depending on the specific requirements of the customer, the ladle slide gate may be packaged in a custom solution such as a pallet or container to facilitate easy loading and unloading.
